Focus on full solutions for the professional sugarcane planting industry

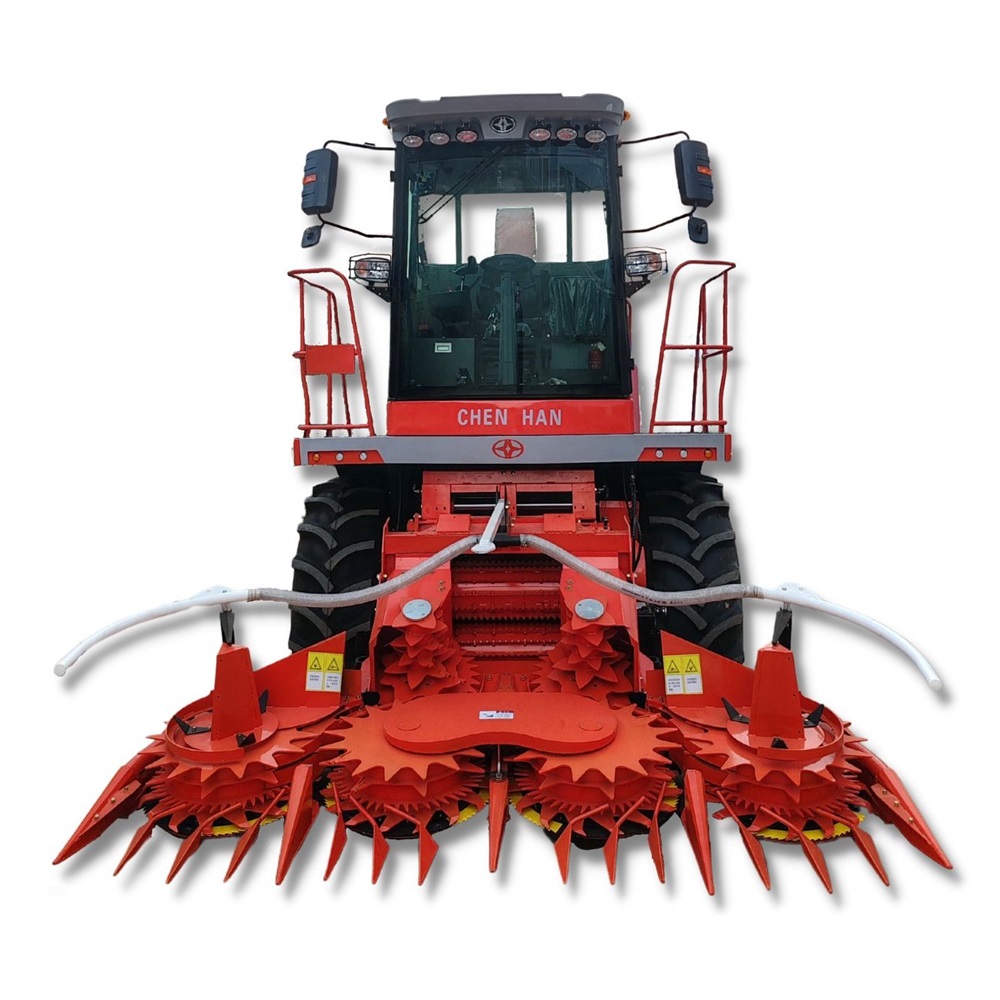

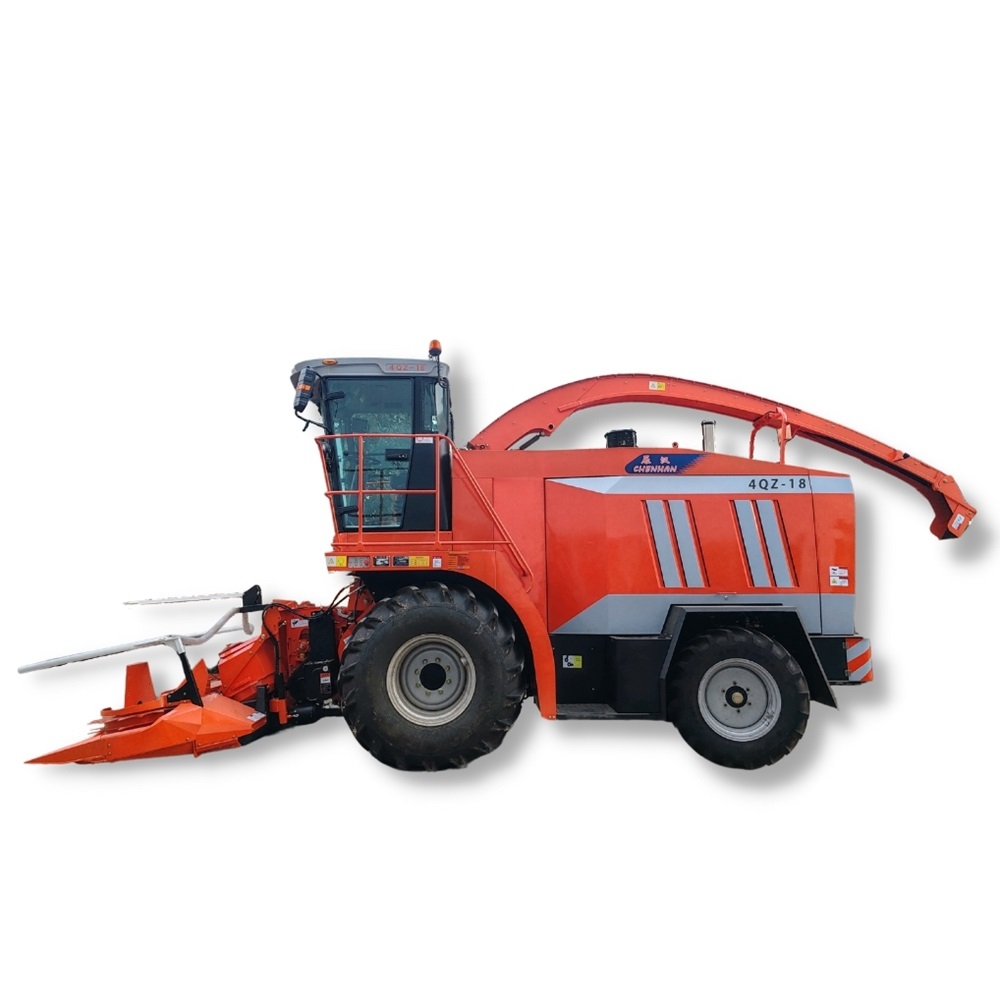

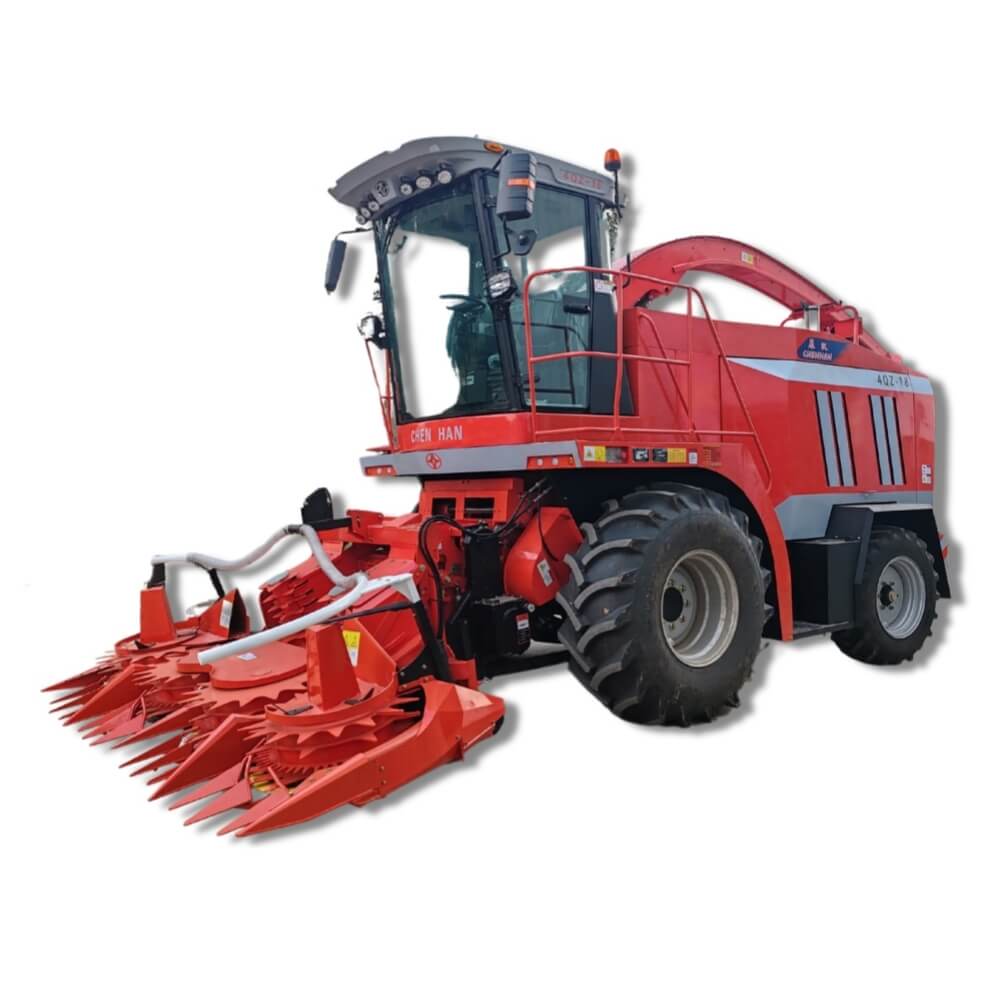

4QZ-18 Forage Harvester

Chenhan Tech 4QZ-18 forage harvester, with its simple structure, reliable performance, complete functions, large feed capacity, and strong adaptability, is suitable for harvesting crops of all heights, including those with straw lodging.

Product advantages and features

Chenhan Tech 4QZ-18 Forgage Harvester

4QZ-18 Forage Harvester

  • Equipped with a 380-horsepower national fourth-generation engine, customers can choose from various diesel engine brands.
  • 35mm foldable cutter bar that can be adjusted to two different speeds and cut stubble less than 150mm high.
  • 750mm ultra-wide feeding port that ensures quick harvesting without clogging.
  • The automatic knife sharpening device and the cutting length can be adjusted in six stages.
  • The entire vehicle power distribution adopts a differential box plus a high-pressure plunger pump and motor power distribution, which delivers high efficiency and low fuel consumption, high quality, and excellent performance.
  • Has a self-made luxury cab, equipped with a cold and warm external circulation air conditioning system. It uses human-machine design seats and integrated control boxes, providing a comfortable driving experience.

Parameter Unit Value
Model / 4QZ-18 Forage Harvester
Structure / self-propelled
Dimensions (LxWxH) mm 8300×3560×5630
Mass Weight kg 12060
Matched Power Power HP 380
RPM r/min 2200
Working Width mm 3300
Track Guide Wheel mm 2240
Drive Wheel mm 2350
Wheelbase mm 2680
Turning Radiu mm 550
Guide wheel tire mm 400/70R24
Driving wheel tire mm 23.1-26
Straw choppingsystem type / Drum type
Operating Speed km/h 2~6
Segment Length mm 7~25
Header Cutter type / Rotory Disc Cutter
